张拉机
一、组成部分：由油泵车、千斤顶、小滑车升降架、油管等组成。
二、用途及特点：
适用于各类钢筋混凝土预应力张拉设备作液压动力配套，并可用于其它各种低流量，高压力的液压机械中。
三、技术性能
1）油泵车：额定油压：50Mpa 额定流量2×2L/min 出油咀数：2个
电机型号：Y-100L2–4 B5 柱塞个数：2×3个 直径10mm
油箱容积：50L 用油种类：夏季HJ32 冬季HJ15
重量：120KG 外形尺寸620×500×1100
2）千斤顶：规格有60T、100T、200T、300T、400T四个系列。

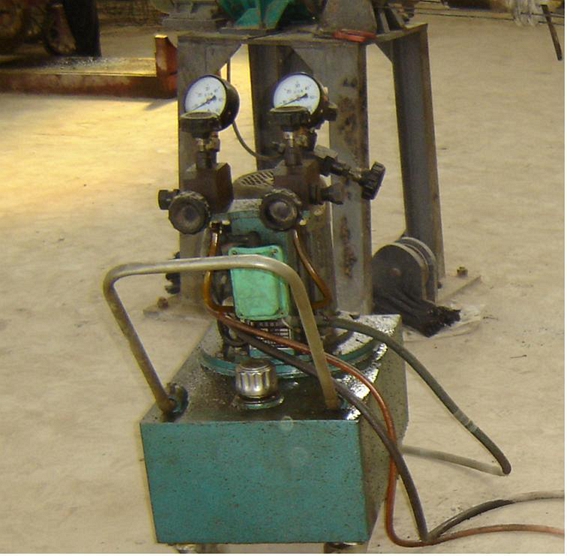

ZB2x250-1 pump car: ZB2x250-1油泵车：

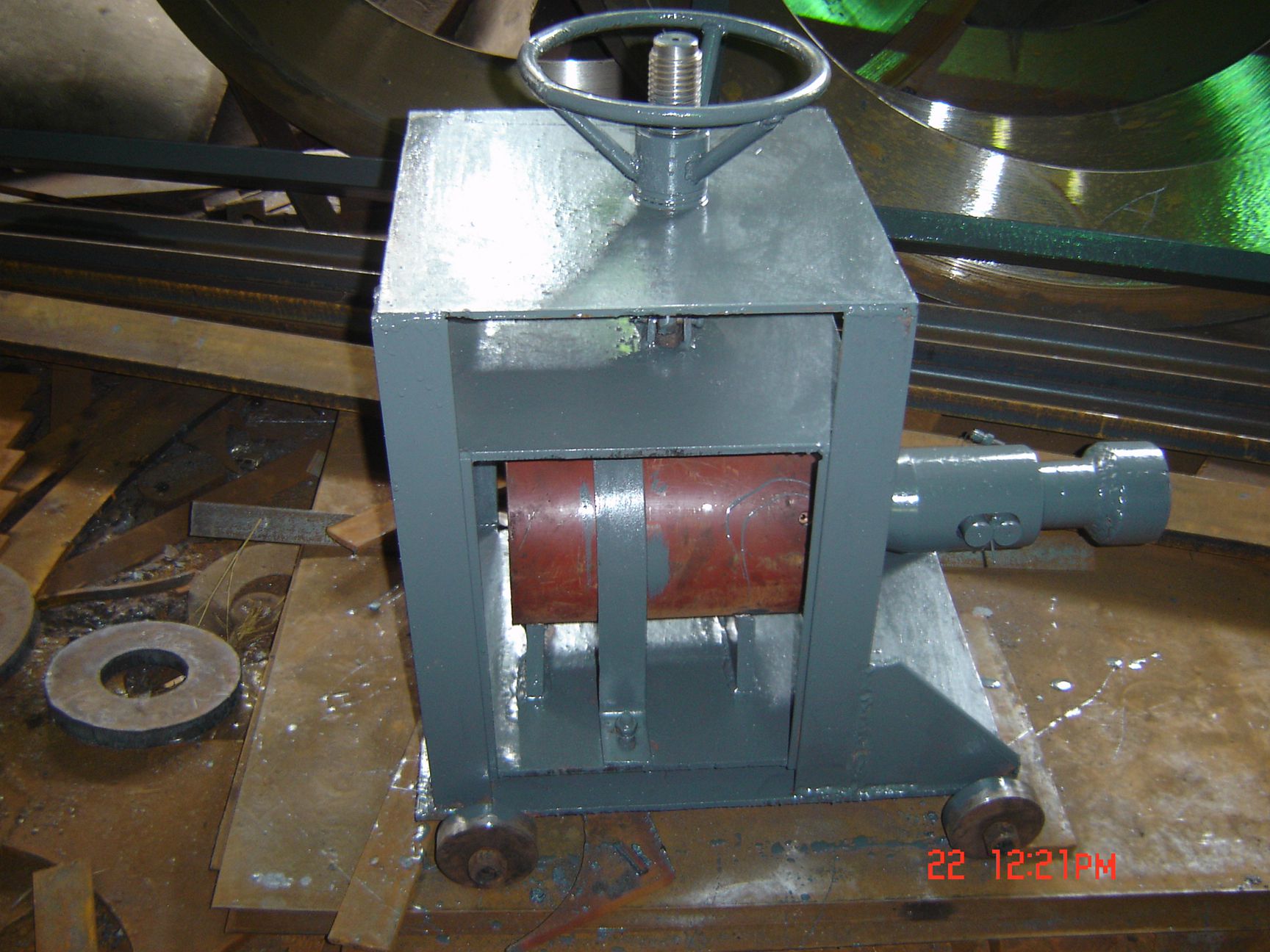

Jack with pulley: 千斤顶和滑车：
Stretching machine张拉机
1 part: from the oil pump, car, Jack, a small pulley lifting frame, oil pipe.
2, use and features:
Applicable to all types of reinforced concrete prestressed tension device for hydraulic powered support, and can be used for other kinds of low flow, high pressure hydraulic machinery.
3, technical performance
1) pump: rated oil pressure: 50Mpa
Rated capacity of 2 × 2L/min
Oil nozzle number: 2
Motor type: Y-100L2 - 4 B5
Plunger number: 2 x 3
Diameter 10mm
Fuel tank capacity: 50L
Oil type: HJ32 HJ15 summer winter
Weight: 120KG
Dimensions 620 x 500 x 1100
2) Jack: specifications are 60T, 100T, 200T, 300T, 400T four series. |
